The Lumentum Series | Part 3: The Genesis of Scale-Up CPO
What we learned from GTC and OFC. Lumentum back to Top Pick!
So, I’ll introduce you all to a fun little method I use to study up on stocks.
Step 1: Find alpha-rich source material you can’t bother to read. This can be an earnings call transcript, conference presentations, or just really technical writeups if you’re a finance native like me.

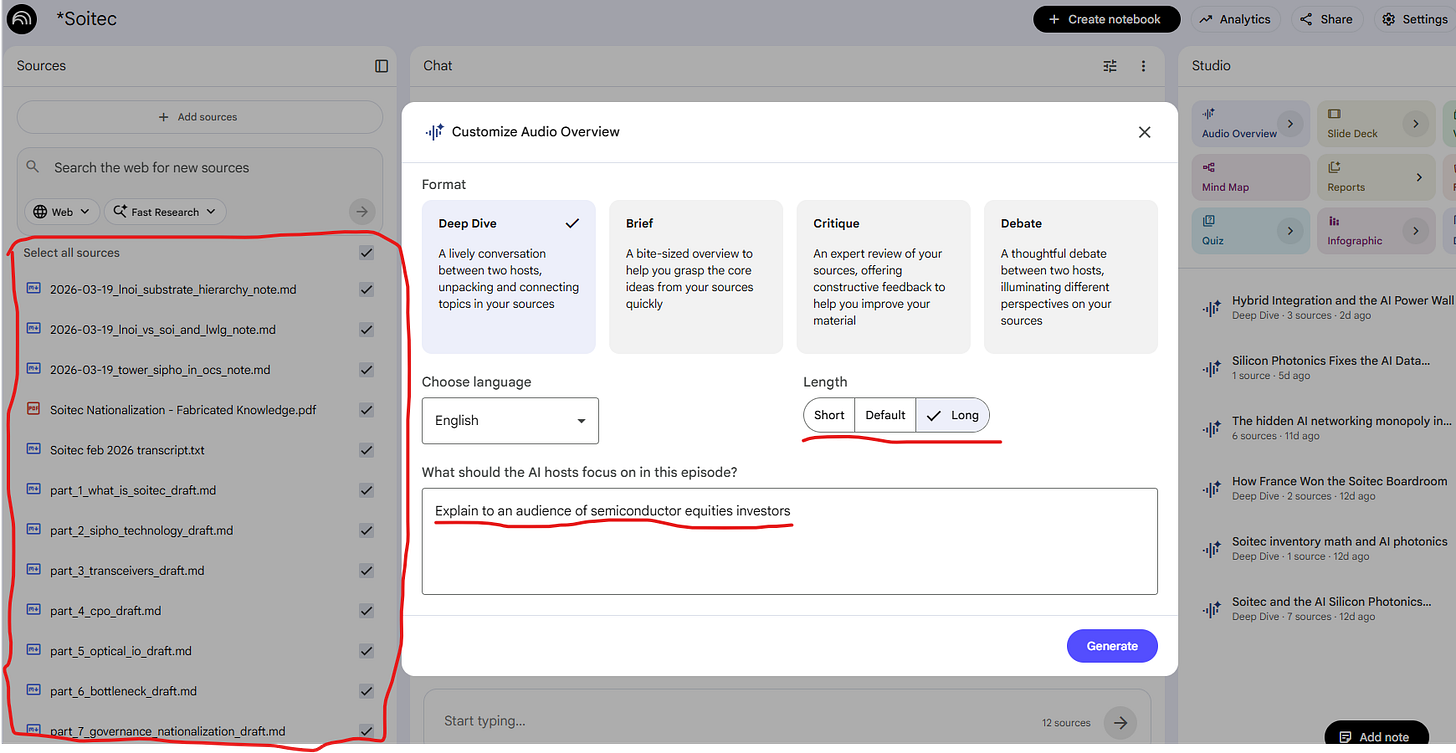

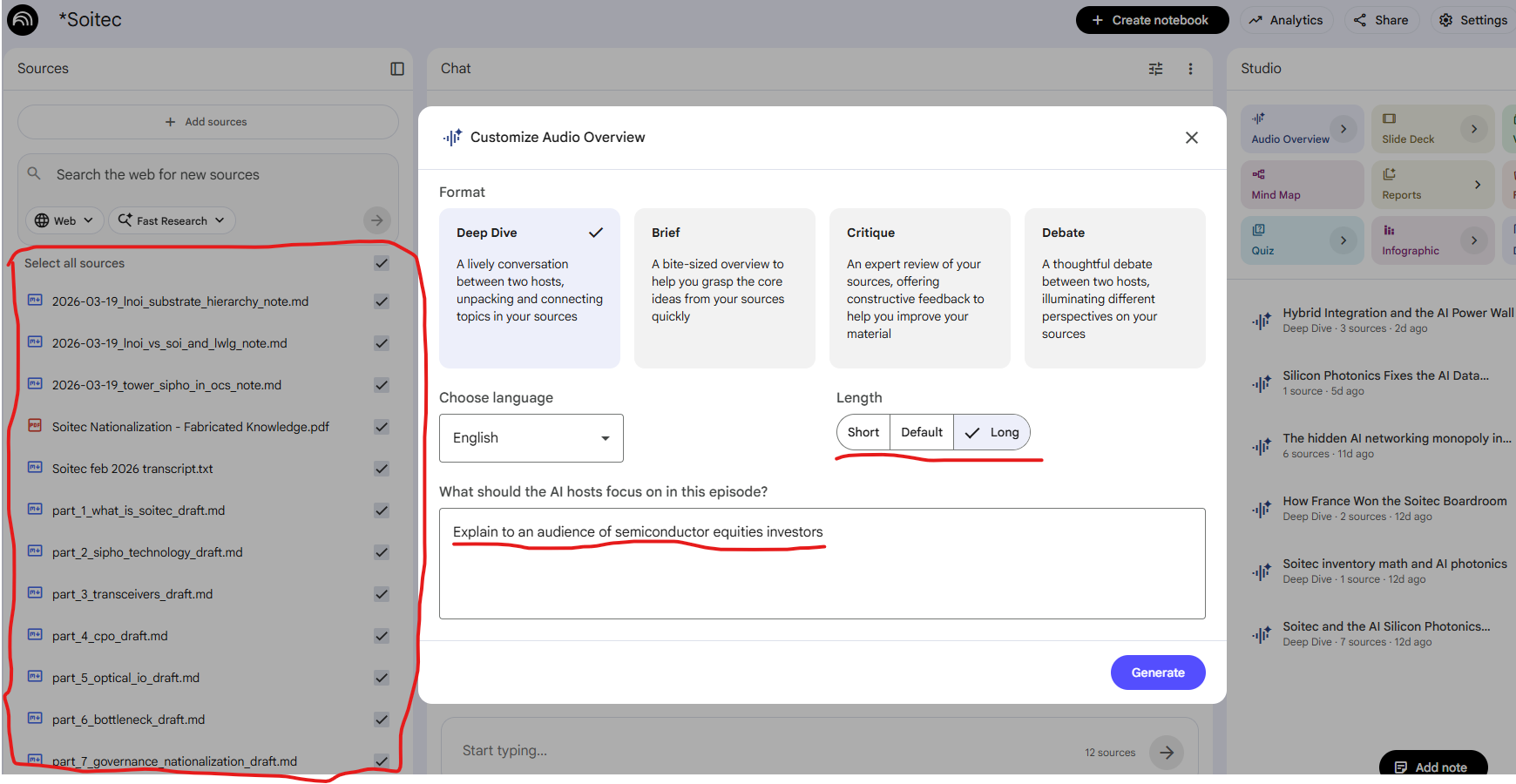

Step 2: Open up NotebookLM and dump your stuff into a notebook.
Step 3: Make a podcast. This involves picking the specific sources you’d like to include, selecting length (I usually do “long” which is 30-50 minutes), and telling the AI hosts to explain to an audience of your background.
Step 4: Listen to your slop podcast.
I listen to like 2-3 hours of these podcasts a day. Yes, that’s right, 2-3 hours of fake AI-generated robotic uncanny valley slop podcasts while I’m eating, walking, doing laundry, or laying on the floor coping with my port being red.
And I’ve learned so much from them that to me, it’s the greatest thing since sliced bread.
You’re welcome, Google for the free ad.
Anyways why do I say this? Because the first 5 minutes of every single AI podcast about optics is the exact same and is super annoying. It goes something like:
“For years we have connected datacenters using copper.”
“Yes”
“But now, copper is hitting a wall as you try to push bandwidth and reach.”
“Absolutely”
“So, we must now pivot to light!”
“You’re so right”
Except for like 5 minutes straight.
But if you zoom out, this is exactly what is happening.

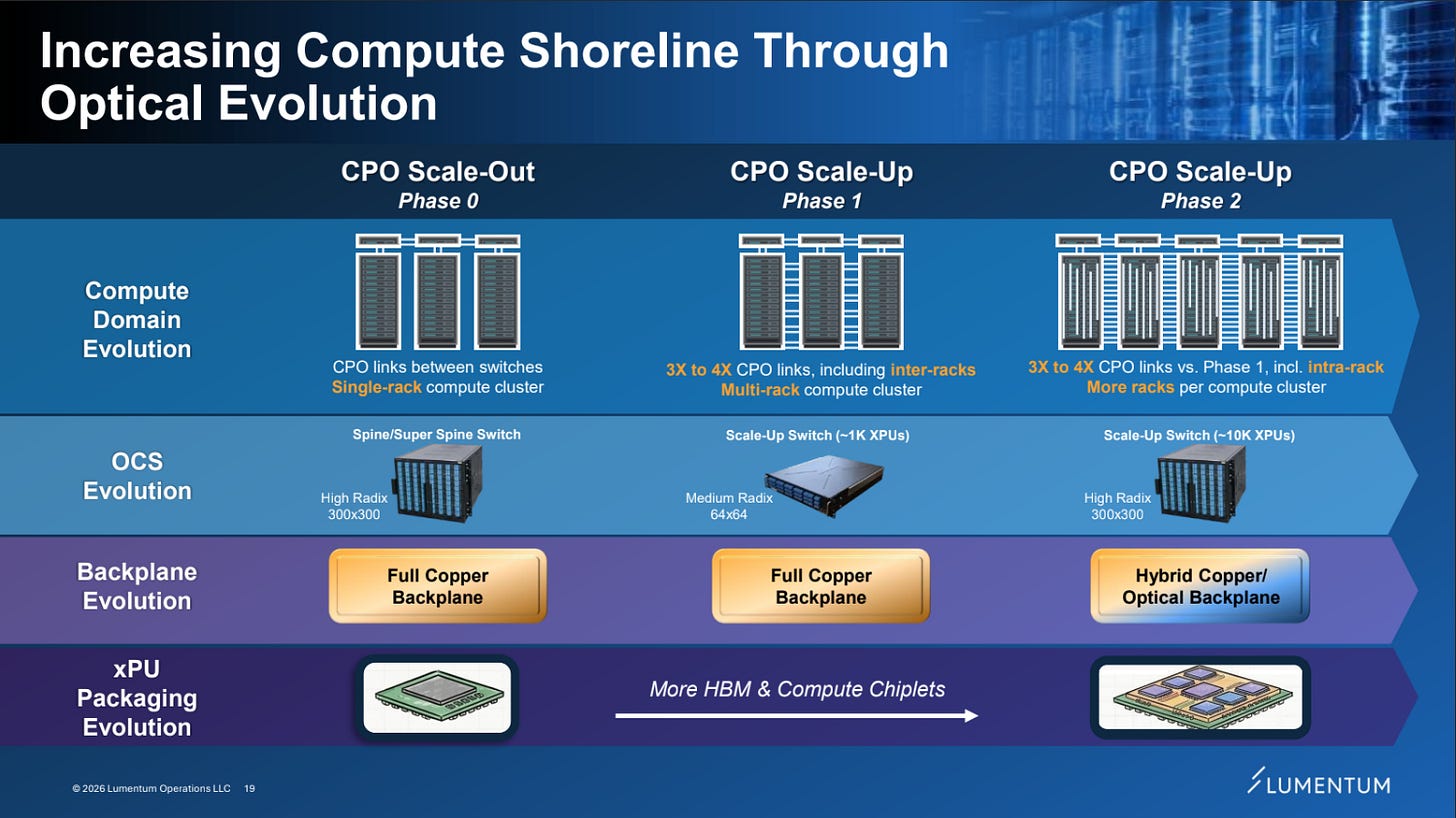

It comes in stages. I planned to introduce this concept in the meat of my Soitec series but Lumentum execs have now put this concept squarely into the hands of the market so I will address it here.

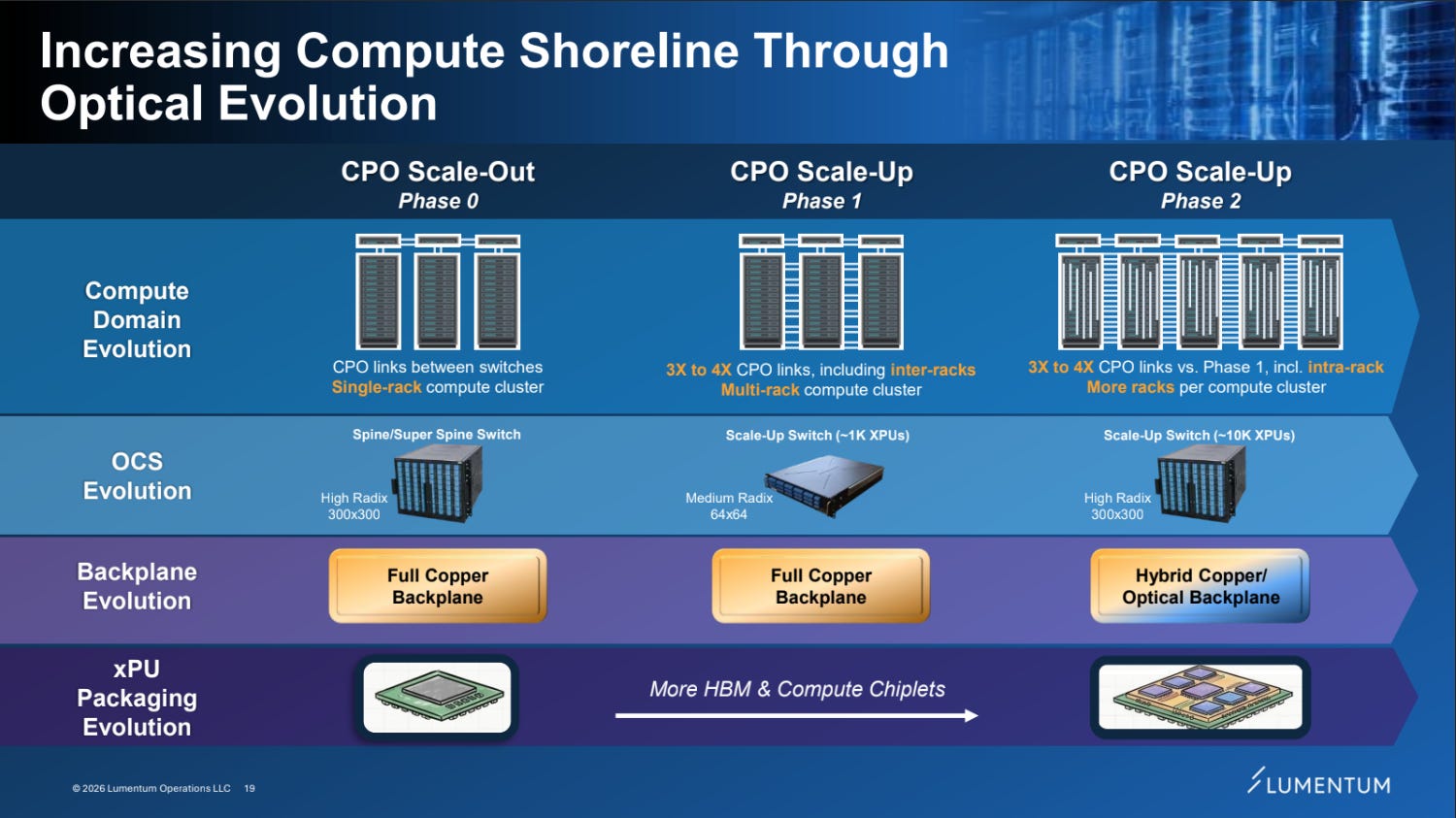

Phase 0 is scale-out CPO. Linking switches of each compute cluster together.
Phase 1 is inter-rack scale-up CPO. Linking together neighboring racks using CPO on the switch tray to expand the “one big chip” scale-up domain.
Phase 2 is intra-rack scale-up CPO. Each GPU talks all-to-all across the scale-up domain using light.
And importantly, each is half an order-of-magnitude larger than the last.

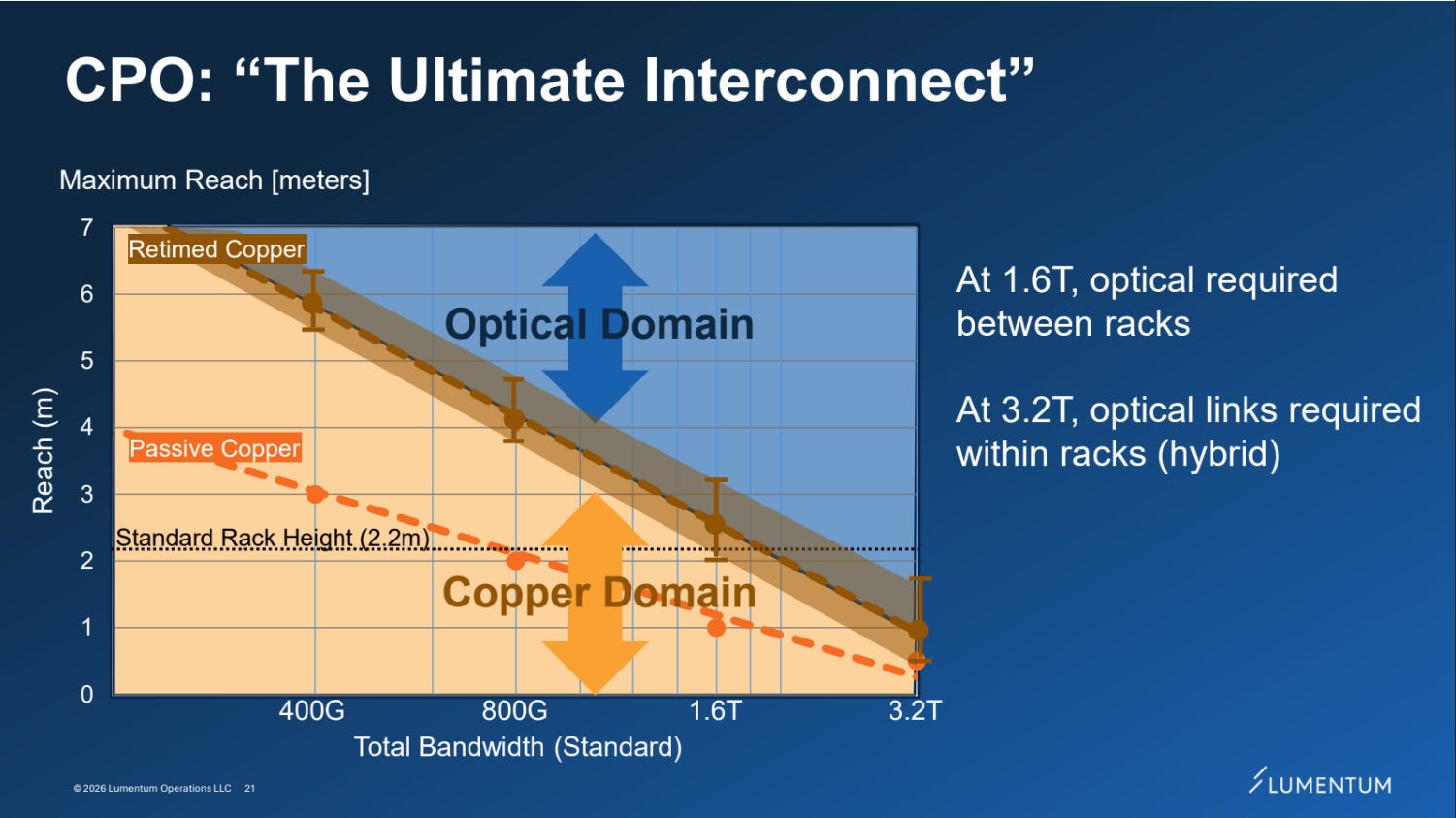

Two of the most predictable trends in datacenters are the migrations to higher bandwidths and larger compute clusters (requiring longer reach).
The first breaks copper via the skin effect. Sending too much data causes electrons to hug the edge of the copper wire instead of using the cross section, requiring copper wires to be wider and wider until they are huge uneconomical pipes.
The second breaks copper via insertion loss. Signal integrity degrades severely over long-distance copper.
Copper replacement occurs in phase 1 and phase 2 (scale-up CPO) only. Scale-out CPO only replaces pluggable transceivers, which are optical already. Scale-up is the real TAM expansion opportunity for optics and is an order-of-magnitude larger.
My prior Lumentum CPO article was mostly describing scale-out CPO. Today I address the much larger and more important topic of scale-up.
And why I move Lumentum back to Top Pick, over Soitec and Aixtron.
Chapters
Laser Tech and the Earned Monopoly
Phases of CPO
Kyber vs Oberon
The Guidance is Absolutely Bonkers and it’s Not Why You Think
Insanely Complicated CPO Laser Revenue Build & EPS Forecast
By accessing this content, you acknowledge and agree to our terms and conditions.
Laser Tech and the Earned Monopoly
Special thanks to Irrational Analysis as he has been pounding the table on the chain of logic from laser tech to Lumentum’s moat for a while. A lot of what I say here is rehashing his analysis. If you’re reading my work I assume you know Irrational already, but if you don’t, you must read his work as he is truly peak.
Lumentum is an earned monopoly because they are capable of making the high-power low-noise lasers needed for all CPO.
How a DFB Laser Works

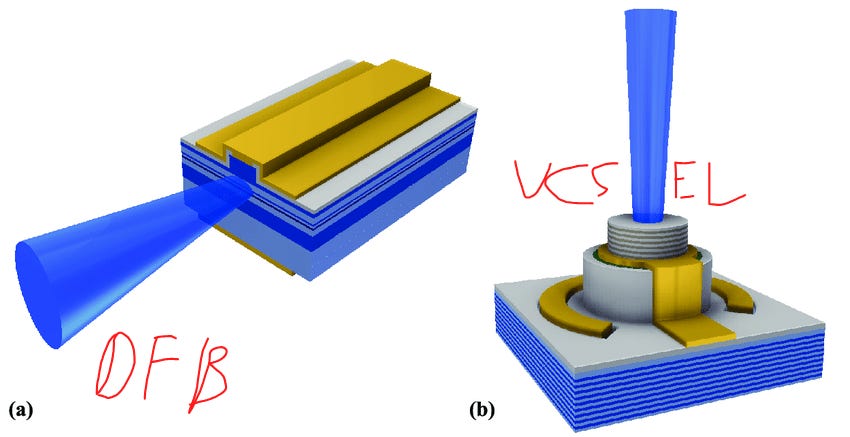

So basically there are two kinds of lasers.
Vertical-Cavity Surface-Emitting Lasers (VCSELs, pronounced vik-sel) emit light from vertically… from a cavity… on the surface. Lol.
Distributed Feedback (DFB) lasers emits light horizontally through a bunch of tiny mirrors that bounce it in a feedback loop to get a really concentrated and clean beam.
Some quick facts:
Reach
VCSELs mostly use Gallium Arsenide (GaAs) and thus are short reach as GaAs can’t emit the O-band light needed to travel long distances in glass fiber.
DFBs use good ol’ Indium Phosphide (InP) and thus are long-reach since the wavelength it emits is O-band and can survive long trips through glass.
Reliability
VCSEL reliability breaks down at high data rates because they turn on and off super fast. Think about taking a car engine and running it at 50mph vs 200mph.
DFBs have high reliability because they emit light continuously and instead are modulated from the outside.
Thus, DFB are the only laser type suitable for most datacenter applications going forward. We can forget about VCSELs and focus only on DFBs.
Why High Power?
If you heat up your lasers they will stop working. GPUs are hot. Co-packaged optics means co-packaging optics with the GPU. As you can see there is problem.
So ok. Let’s put the laser outside in an External Light Source (ELS) module and only have the optical engine (all the non-laser stuff) co-packaged. Laser stay cool.
Not so fast! Since the light has to travel through a bunch of stuff to get from outside to inside it suffers from insertion loss and the final light beam is really weak.
Well fine then. I guess we have to increase the number of lasers.
Not so fast! To maintain signal integrity, the light traveling from the laser to the optical engine has to stay in a consistent orientation — consistent polarization. This means every laser requires polarization-maintaining fiber, which is expensive, and the process of attaching it is painstaking and yield-sensitive. We must minimize the number of PM fiber connections per system at all cost, which means using only one laser.
Ah I see. The only solution is ULTRA-HIGH POWER LASER!!!!!!!!
Why Low Noise?
Think of linewidth as the pureness of the color of the laser. If you need a red laser beam you don’t want the light to have any hints of green. Narrow linewidth means your red laser is very, very red.
Relative Intensity Noise (RIN) is the noise of the relative intensity of the laser! So how much the output power fluctuates.
Why are these important? Because your laser is playing a very stupidly hard game of telephone with the receiver on the other end.
You must encode bits of data in the light by modulating it so the receiver can detect the data by reading what you’ve modulated into the light stream. If your laser introduces its own noise, it’s like the first kid in the game of telephone having a lisp. Your bit error rate (BER) spikes and the link drops.
Lumentum Mogs
The reason why this is all good for Lumentum is that the combination of high power and low noise is VERY HARD. Increasing laser power generally makes it noisier. Most makers of lasers can have one but not both.
Noise is caused by defects. The way to reach the holy grail is basically extreme quality. You just have to get really good. It takes decades of process learning like TSMC’s high leading edge logic yields.
Lumentum has completed this exact process learning through making lasers for subsea telecom applications. Like the lasers for the fibers that run under the Atlantic so the internet works.
If you snoop around in Lumentum earnings transcripts you’ll see them trying to hint at their ultra-high market share wherever low noise lasers are required.
Ryan Koontz (Managing Director and Research Analyst)
“That’s great. Exactly what I was hoping to hear. And then maybe shifting gears maybe to narrow linewidth lasers for the DCI element. Is that a different set of competitors? Obviously, a different set of customers, but can you kind of educate us a little bit on the competitive environment for the narrow linewidth lasers for coherent? Thank you.”
Michael Hurlston (President and CEO Lumentum)
“Yeah, I’ll maybe give some comments and then throw it to Wupen. We have very strong market share here, right? I think our competitive landscape is more limited, perhaps, in this area than many of those we participate in. To your point, Ryan, the customer base is different. These are more of the traditional telecom guys that now have shifted and pivoted their business toward the hyperscalers. And so we’re providing solutions to all of those guys in our narrow linewidth offering. But we have, Wupen even correct me if I’m wrong, very, very high market share here and a strong competitive position.”

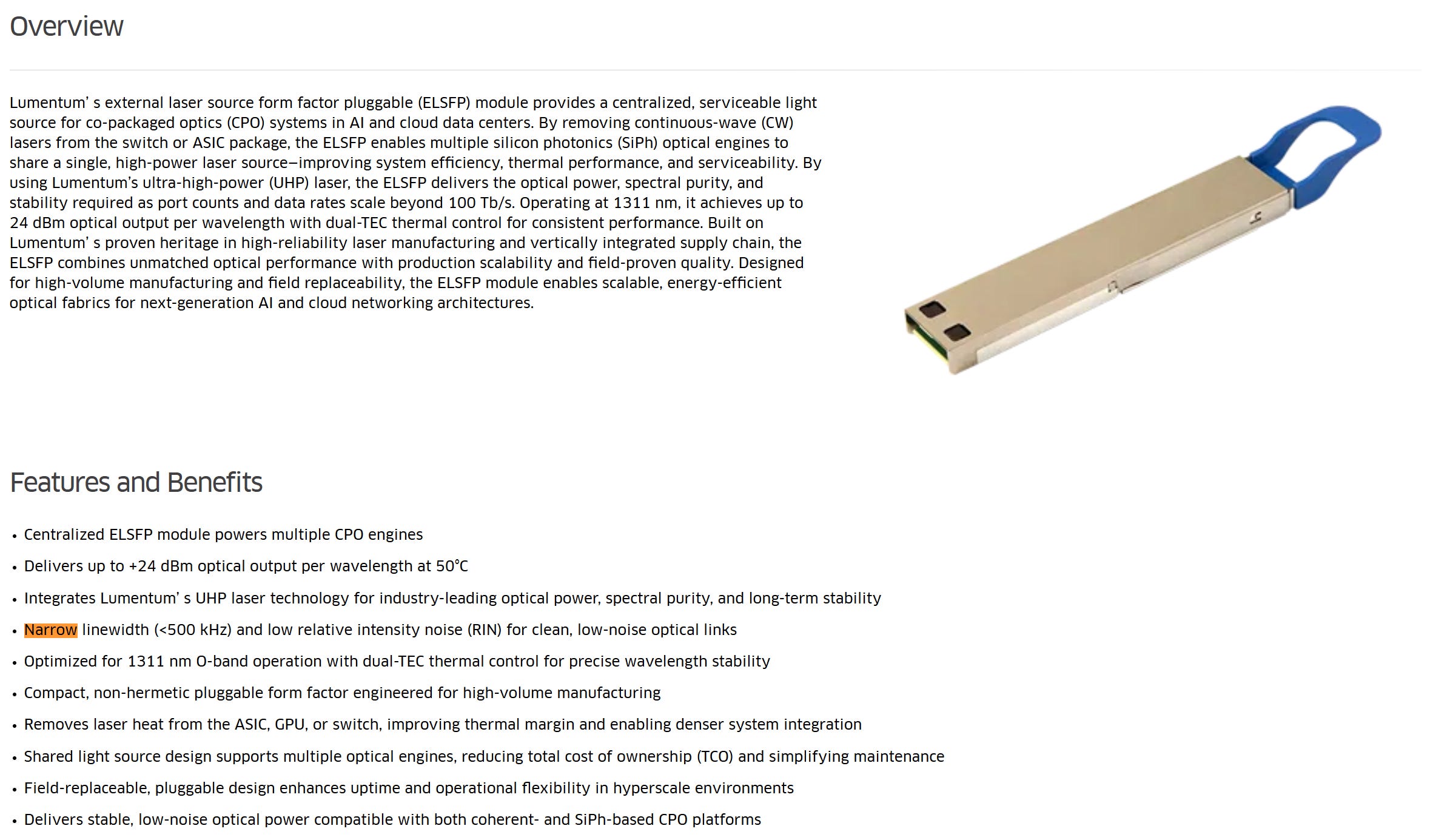

And they are the only laser maker to explicitly advertise their noise specs.
Lumentum mogs, truly.
Phases of CPO
CPO comes in several different waves, each larger and penetrating deeper into the rack than the last.
The easiest way to understand scale-out vs scale-up is through software.
Scale-up means you’re linking hardware in a way where the software still thinks it’s one machine. That means the connection must be BLAZINGLY fast.
Scale-out is connecting many of these “machines” via something like ethernet. Scale-out traffic crosses switch boundaries. It doesn’t need as much bandwidth, but because packets have to hop across switches, there is a bit of latency.
Phase 0: Scale-Out
Scale-out is already optical. This is where transceivers live. So why are we doing CPO?
Two reasons. This is pretty well covered in my previous writing.
The journey from the GPU to the face plate has copper → which creates signal loss → which causes a DSP to be needed → which sucks power. Scale-out CPO eliminates this annoying chip, improving power efficiency.
Scale-up CPO ramp is so massive that Nvidia needs scale-out CPO as a guinea pig to prime the supply chain and get reliability data.
Phase 1: Inter-Rack Scale-Up
Jensen doesn’t think NVL72 is enough and wants to expand the scale-out domain further. Copper can’t give you any more reach beyond NVL72 but within NVL72 it works perfectly fine. We are at copper’s reach limit but not the bandwidth limit. This is where phase 1 CPO comes in!

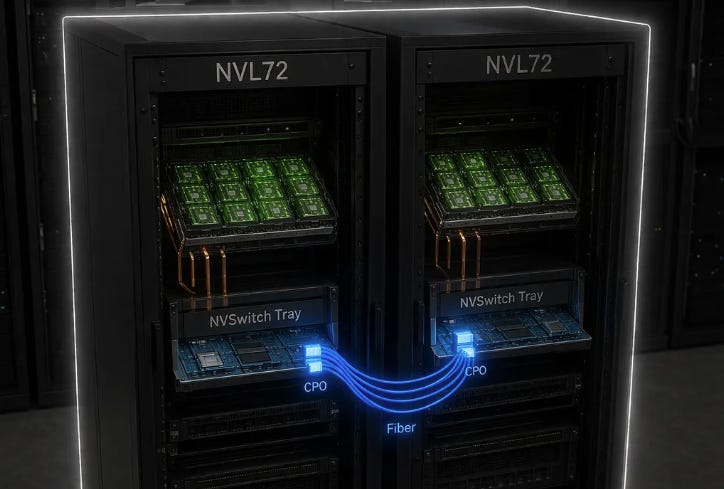

Take two adjacent NVL72 racks and connect them with CPO. The CPO goes on the switch tray.
Phase 2: Intra-Rack Scale-Up
This phase is far, far away. Optical bulls have to sit on their hands for this one.
Phase 2 CPO deployments require copper SerDes to fail. It has to reach the bandwidth limit.
When Hock Tan pushes for 400G SerDes on copper and called CPO a “bright, shiny object,” this is what he was referring to. After that earnings call there were the panic sellers then there was a bunch of analysts saying “Nooo you’re overreacting they’re not the same thing” this is what those analysts were referring to. Phase 0 and 1 are perfectly fine. It’s only phase 2 that keeps getting pushed.
So what is this mysterious endgame? Well in a sense it’s the simplest of all. It is GPU-to-GPU, all-to-all optical communication inside a single rack
Kyber vs Oberon
GTC was pretty cool.
The most important announcement Jensen made for Lumentum is the two seperate rack architectures for the Rubin Ultra generation: Kyber and Oberon.
Both support NVL144 (for Oberon it’s called NVL576 based on the number of DIES and not PACKAGES which is weird. It’s still NVL144). NVL144 is just two adjacent NVL72 racks connected.
However, Oberon uses Phase 1 CPO while Kyber does not. Both will adopt Phase 0 though.
Jensen Huang
"There's a lot of conversation about is NVIDIA going to copper scale up or optical scale up. We're going to do both. We're going to have NVLink 144 with Kyber, and then with Oberon, we're going to NVLink 72 plus optical to get to NVLink 576.”
That means for each, there is a different very specific ratio of GPUs to optical engines, optical engines to ELS, and ELS to lasers I’ll get into in the modeling section.
Oberon

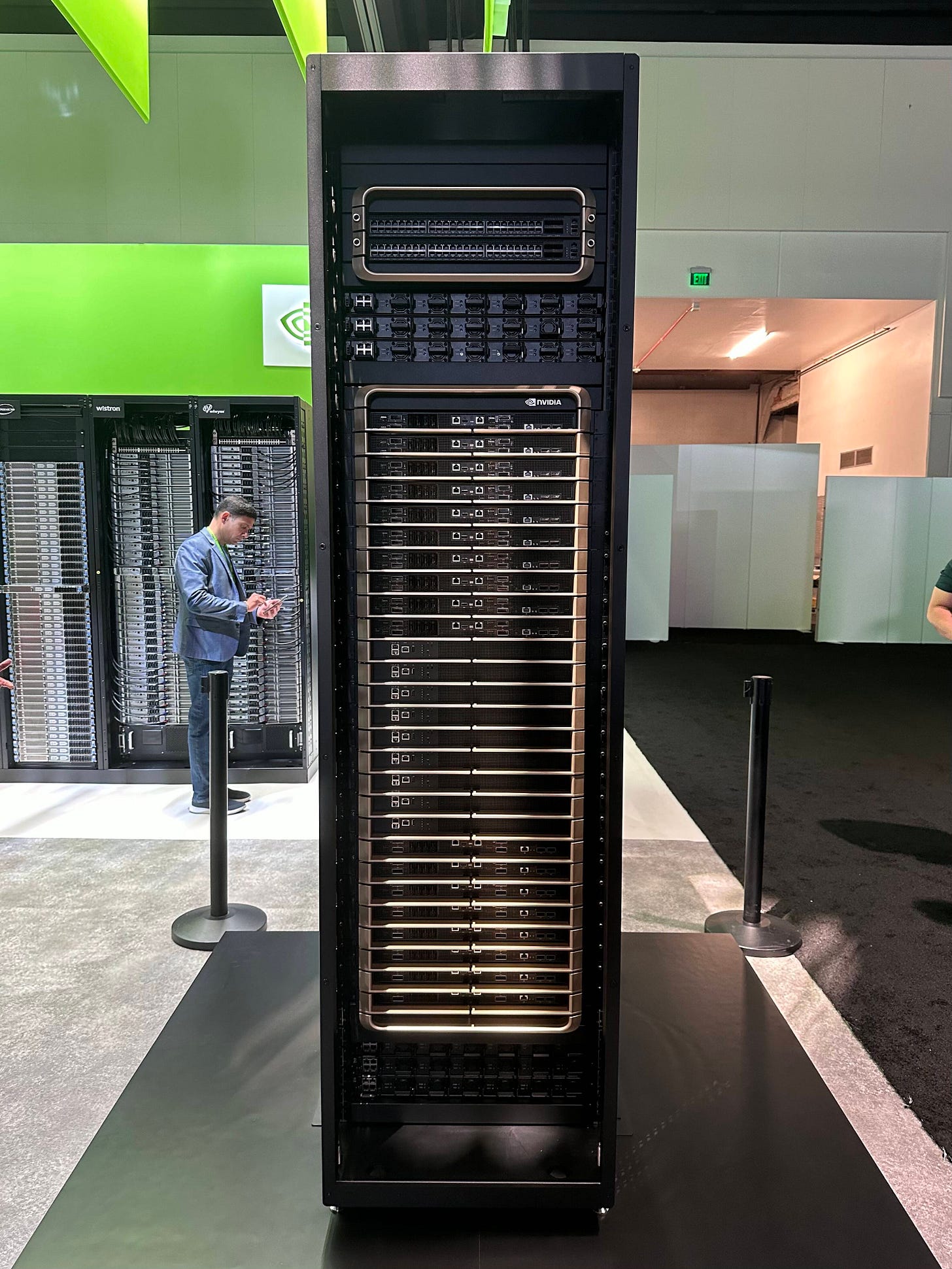

This is the incumbent regular standard rack system. Used in Blackwell and stuff.
The reason Oberon needs optical to go to NVL144 is because you need a second rack. that’s it.
Pros:
Backwards compatible so you don’t have to rip and replace.
Modular and serviceable.
Known supply chain and failure modes.
Cons:
More floor space.
Multiple power/cooling endpoints.
Kyber

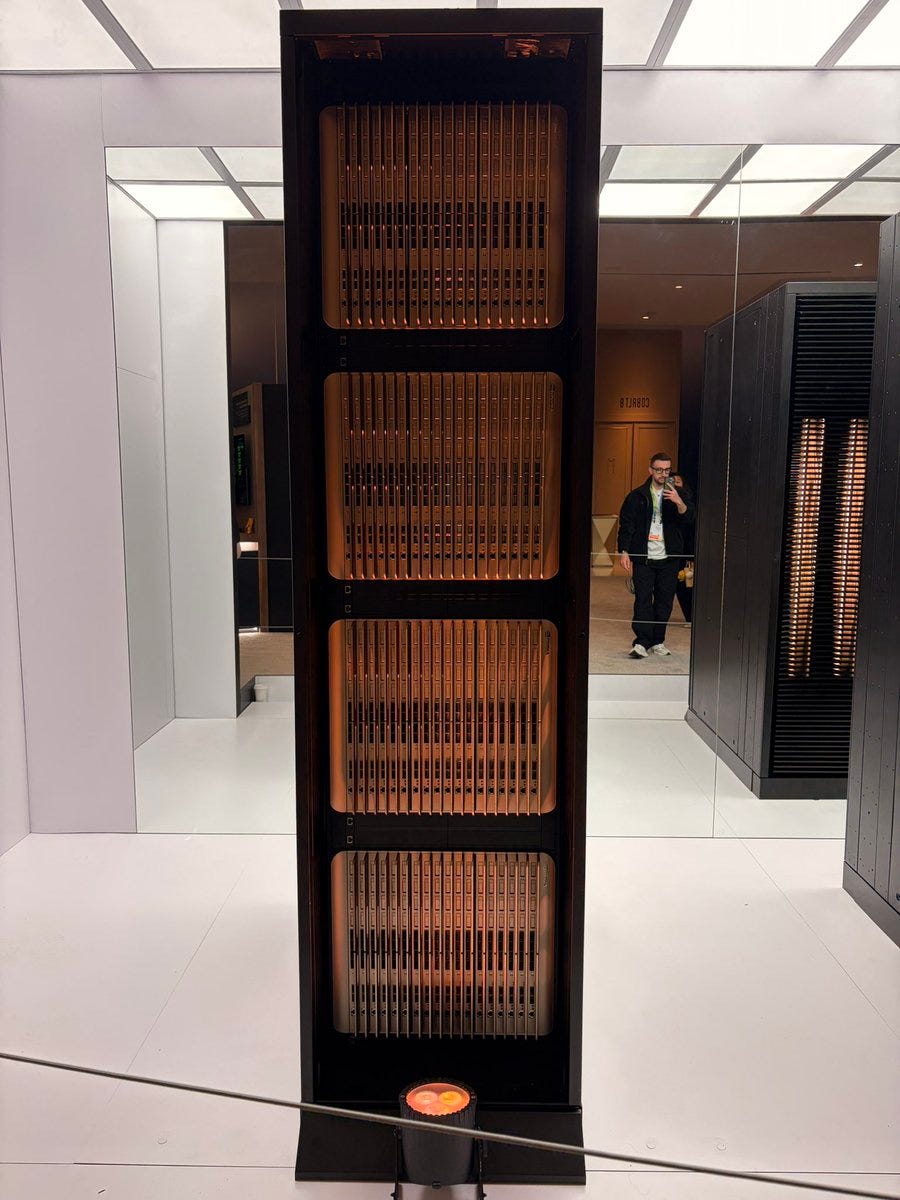

Kyber allows you to insert GPUs sideways.
Why do this? Because you can fit all 144 GPUs in one rack. Yes, the rack is bigger but now it’s possible. So therefore, you won’t need optical.
How is this possible? Take a lookie:

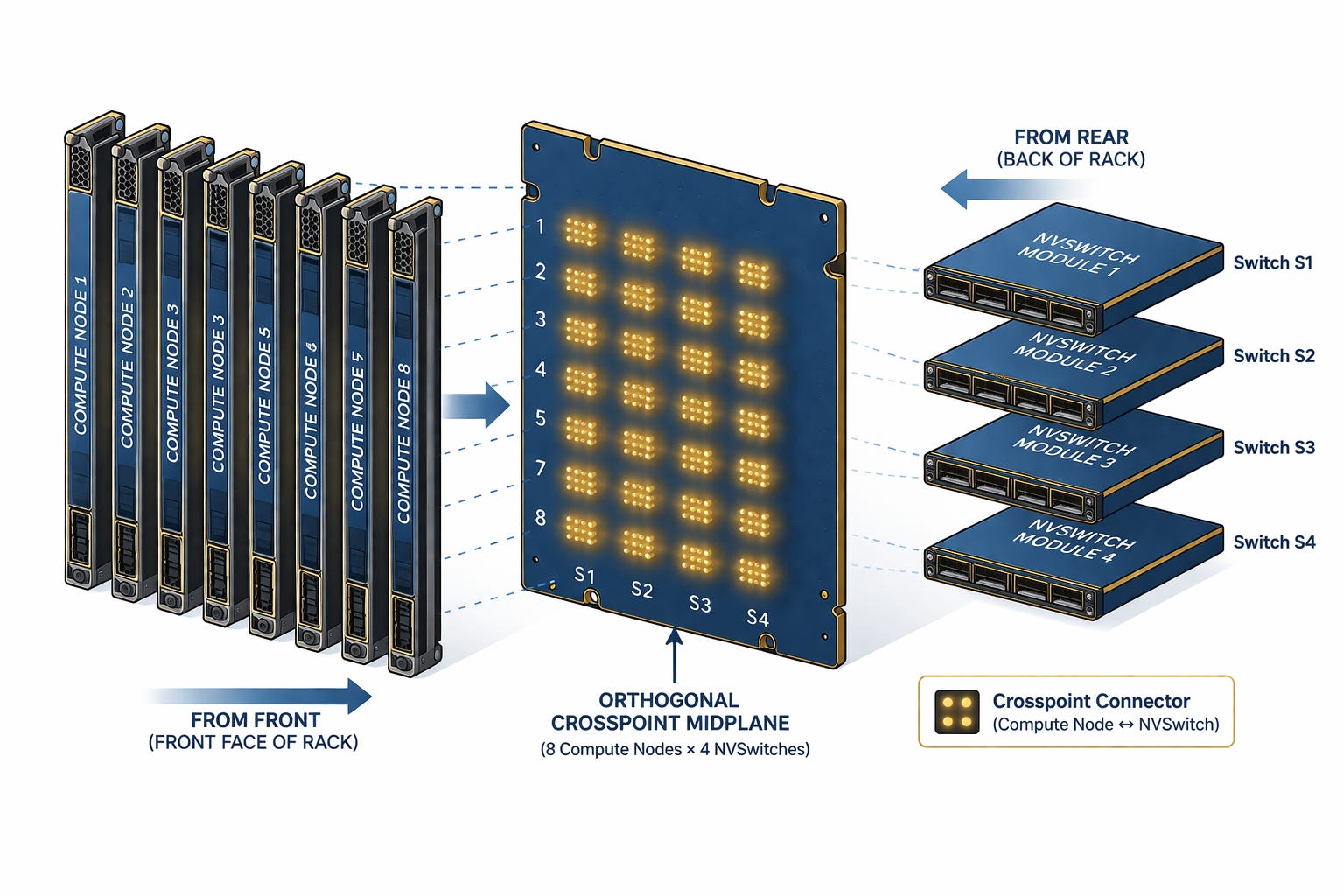

GPUs go in vertically from the front. NVSwitch modules go in horizontally from the back. They meet in the middle via orthogonal midplane. Super compact! Save space!
Pros:
Save floor space.
One power draw and cooling loop.
No optical requirement.
Cons:
Orthogonal midplane yields are really bad.
Much of the adoption is about whether those midplane yields can improve. Which means midplane yields are the enemy of CPO, at least in the near term.
The Guidance is Absolutely Bonkers
The guidance is absolutely bonkers.

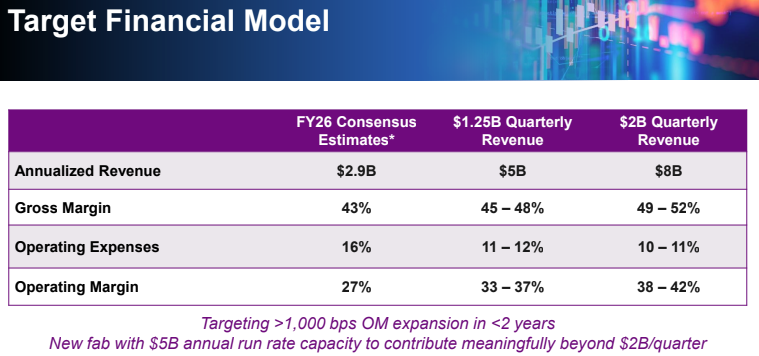

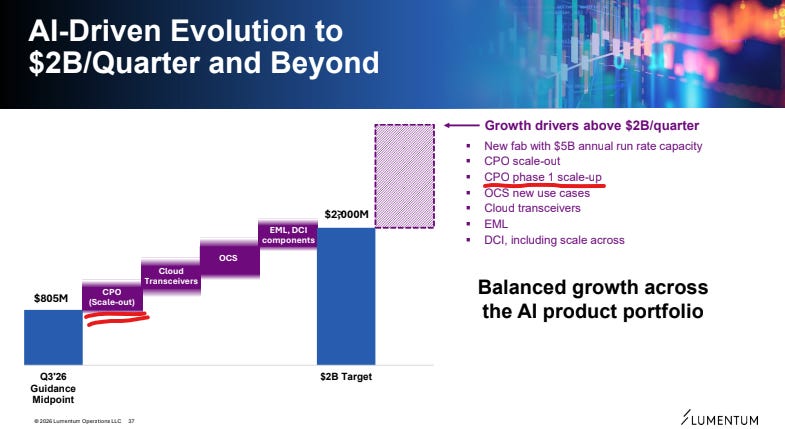

At OFC, Lumentum said they will have $5b revenue run-rate within 9-12 months (so YE 2026) and $8b revenue within 18-24 months.
Some of you may have seen my models (or those of other creators) and concluded that $8b does not sound like a lot.

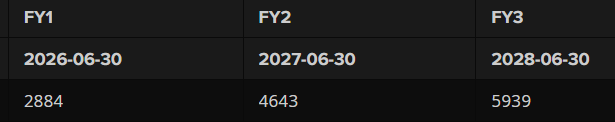

If you go off the sell-side numbers you might say:
“hmm, $8b run rate in 18-24 months means EOY 2027, which means FY Jun-28 should have around $8b in revenue. That’s only 33% above sell-side. We’ll definitely get revisions, but that’s not bonkers!”
The reason this is a lot better than it looks is because that $8b comes with many caveats that push the real number very far towards the upside.
They really are trying hard to be humble, it’s kind of funny.
First of all, 9 and 18 months is their internal case, 9-12 and 18-24 is just their conservative public-facing targets. Cue Wajid:
Wajid Ali (CFO Lumentum)
“if you take a look at what we internally believe and what our customers are asking for and what we’re ramping up our own internal capacity for, and you were to say, okay, how long would it take for us to achieve each one of these targets from a run rate standpoint, we would say nine months and nine months.”
“we think it is prudent and measured to add three months in the range to each one of those targets”
“the internal team is doing everything possible to make sure that we beat even the low end of those targets”

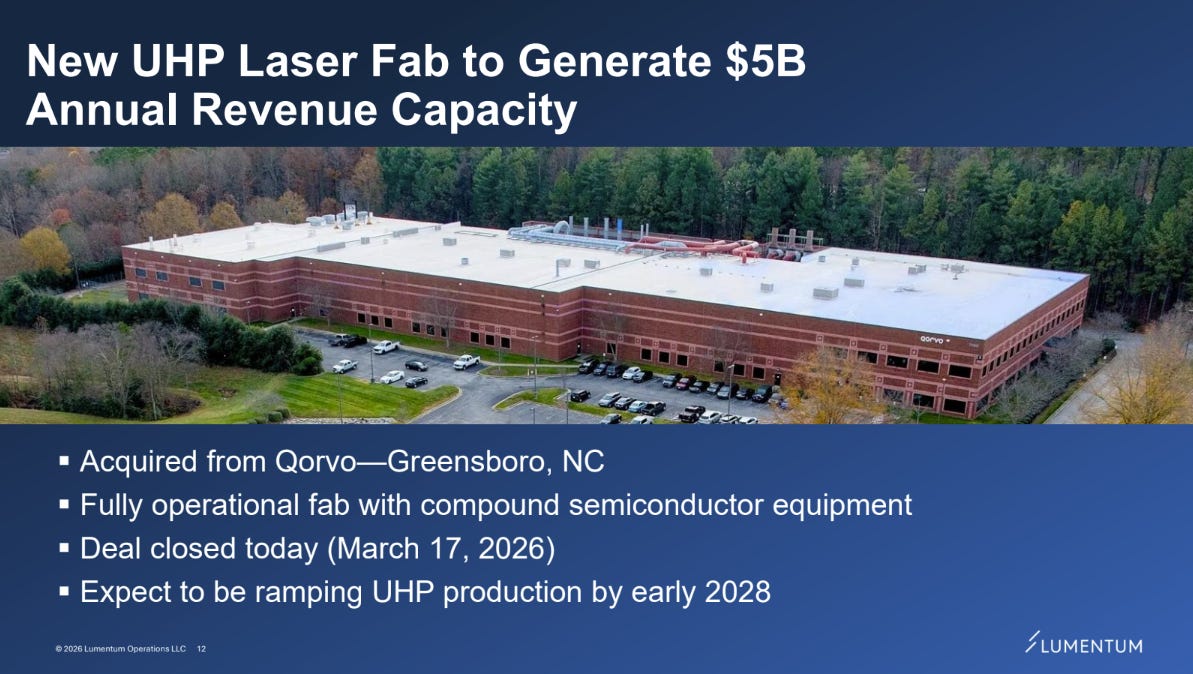

Second of all, they announced acquiring a massive brownfield fab from Qorvo completely dedicated to CPO lasers capable of $5 in annual revenue.
And what do they say about the fab?
Wajid Ali (CFO Lumentum)
"the capacity for Greensboro is not included in any of these numbers that we're talking about here. And yet, the multi-billion dollar agreement that we have with NVIDIA requires that Greensboro fab. So, none of that potential revenue and capacity is in any of these numbers. And the reason for that is because we're not talking about calendar 28 yet."
The fab isn’t included in their guidance. That’s fine and dandy. But the best part is the Nvidia purchase order (remember the order that came with the $2b investment in early March?) REQUIRES this fab. So none of THAT revenue is here either! And as you will see in my model, Nvidia is one of, if not the, most important revenue stream for Lumentum.
Third of all, Phase 1 and Phase 2 CPO aren’t included in the $8b run-rate guidance either.
Wajid Ali (CFO Lumentum)
“many of the capital deployment decisions we’re making now, like the one we announced this morning on the Greensboro fab, are around the box to the right of the 2 billion dollars”
Michael Hurlston (CEO Lumentum)
“The first instantiation of scale up... we estimate to be three to four times larger than the initial scale out CPO. And then as we get inside the rack, which inevitably will happen, it’s a ten times larger in terms of the number of lanes that we see.”
Uhh what? Like your ENTIRE FUTURE is excluded from your OWN GUIDANCE?
Hahahahahaha

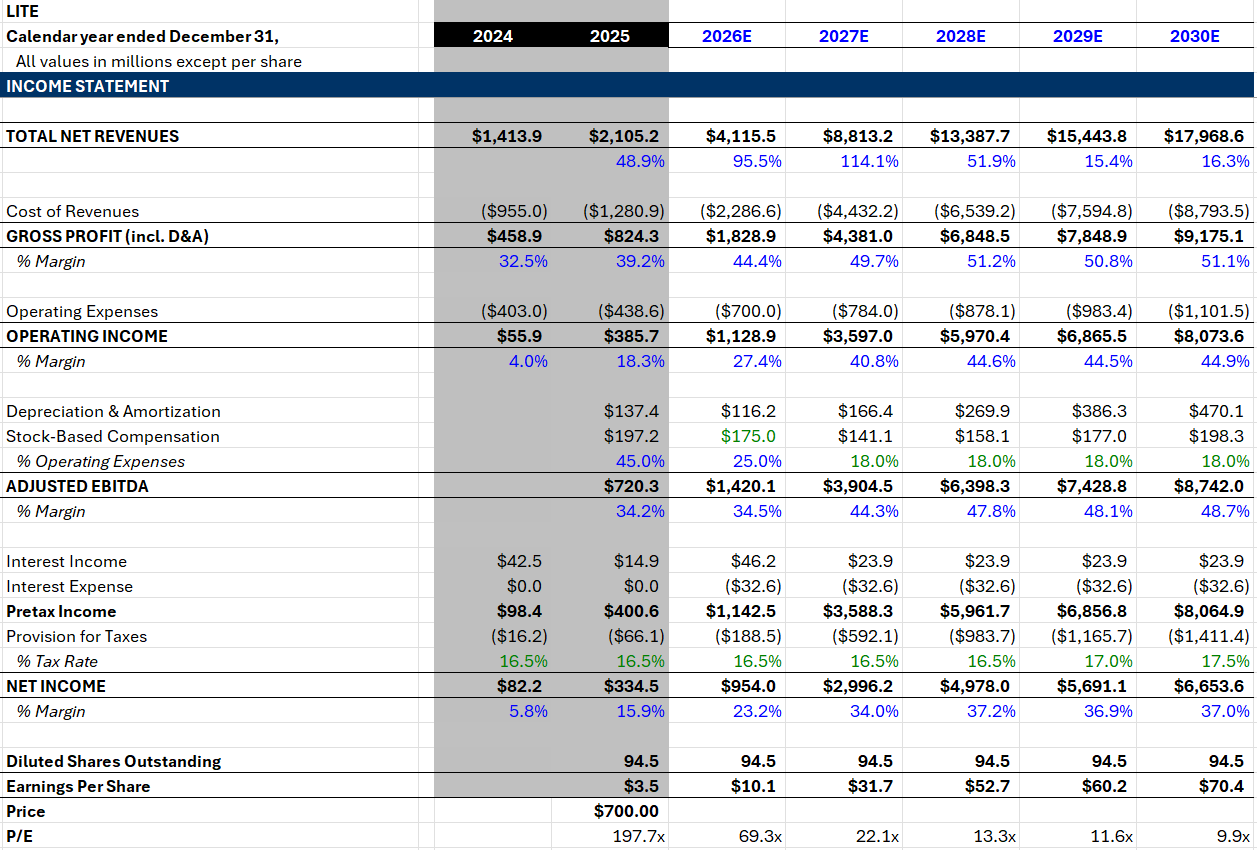

Insanely Complicated CPO Laser Revenue Build & EPS Forecast
This took a TON of work on my part.

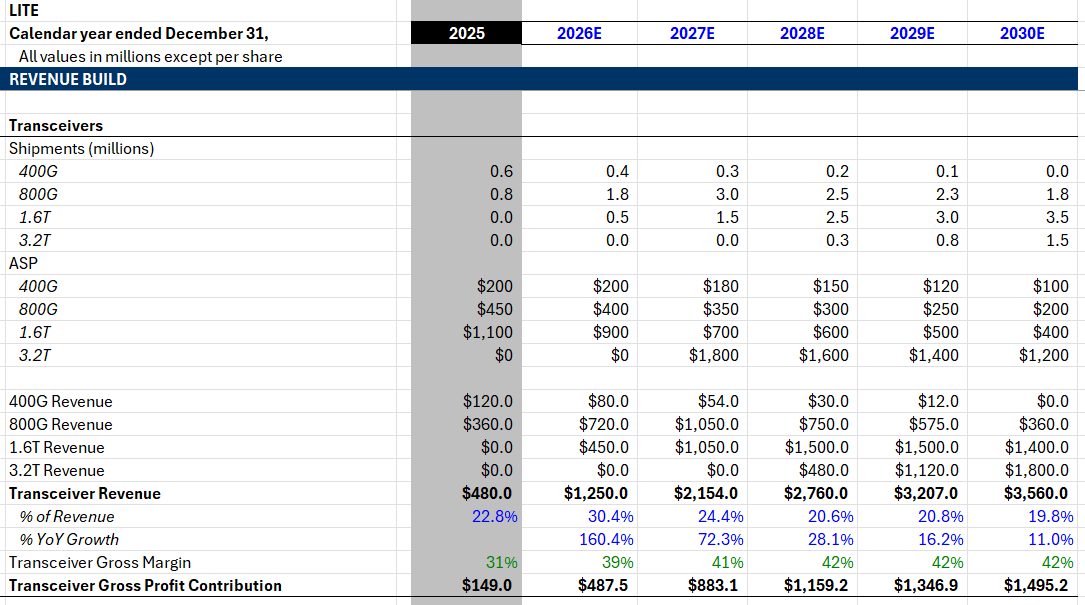

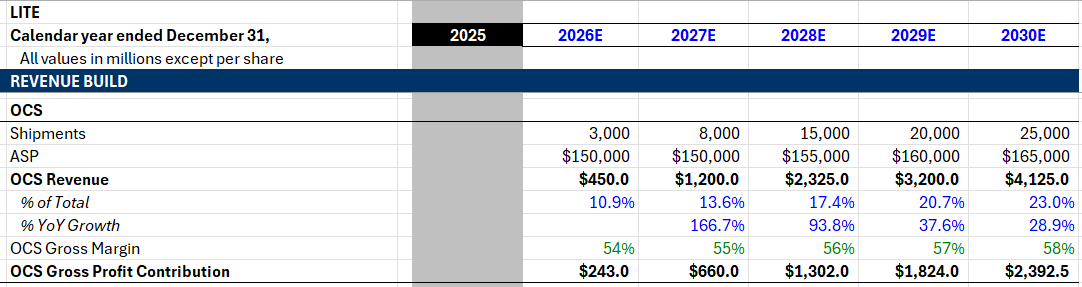

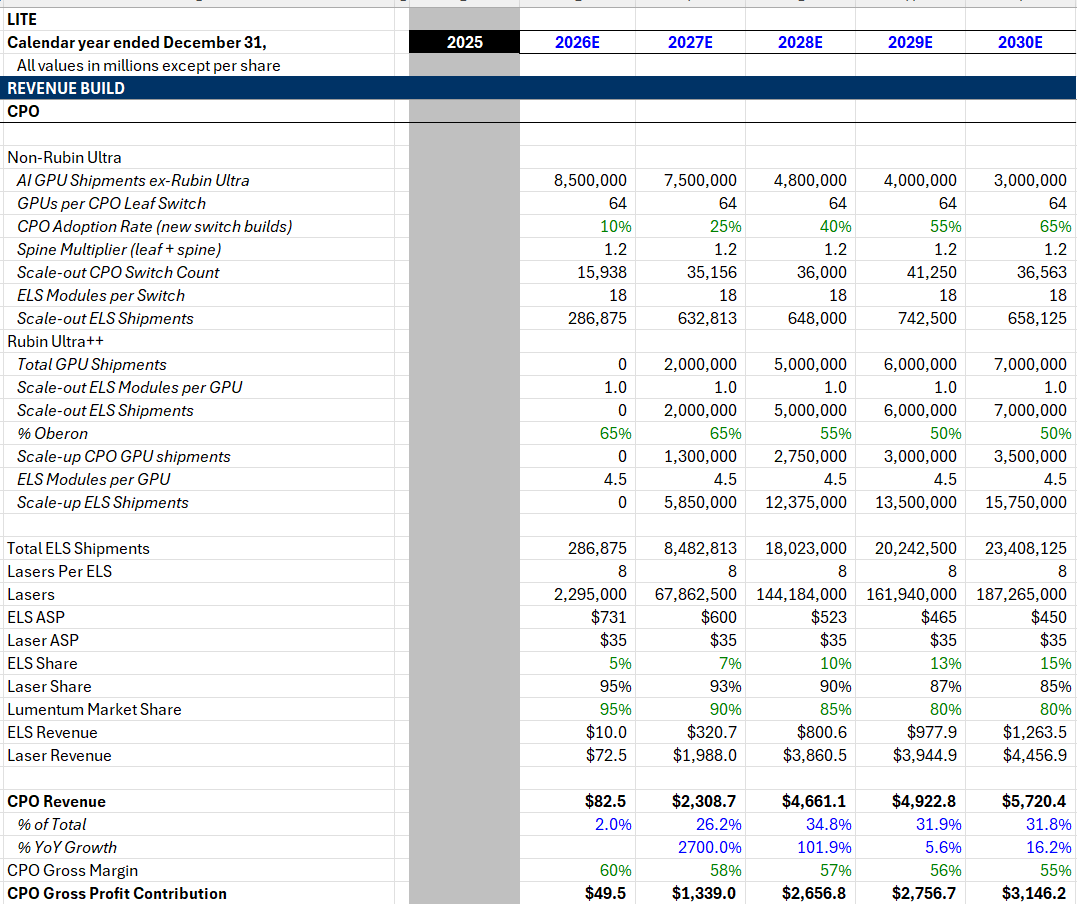

The most valuable takeaway you’ll have from this section is a bottoms-up build of the ELS per rack and ELS per GPU ratio for Kyber and Oberon racks.
As well as ASPs for ELS and UHP lasers.
And Oberon vs. Kyber fleet mix assumptions, Lumentum market share decay schedule as competitors qualify, ELS vs. bare chip mix ramp and its 2x revenue multiplier effect, CPO adoption rate curve for the non-Rubin Ultra switch universe, spine multiplier and switch radix assumptions for the leaf-spine fabric, and gross margin trajectory as product mix shifts toward ELS and scale-up.
Let’s try a challenge today. Given the alt data I have, I will try to be as conservative as is reasonable. For Lumentum, very challenging indeed.
Realistic conservatism though, not the sell-side “estimates” that never move.
It turns out that even conservatism gives us incredible numbers.
